Stainless Steel Filter Elements

Pleated Filter Cartridges

Stainless Steel Pleated Filter Cartridges for Liquid, Gas & Steam Filtration

SS304 / SS316L 0.5–200 µm High-Temperature Service Fully Welded DOE / 222 / 226 Reusable
Media Options
Wire Mesh / Sintered Felt
Filtration Rating
0.5–200 µm
Construction
Fully Welded Metal
Cleaning
Backwash / Ultrasonic
Filtration Area
Up to 3× Cylindrical
Length Range
5”–40” / Custom
✓ ISO Quality ✓ Passivation Tested ✓ OEM Available

Product Overview

Pleated Stainless Steel Filter Cartridges for
Reusable Industrial Filtration

SINFT pleated filter cartridges are fully welded stainless steel elements designed for liquid, gas, steam, oil and chemical filtration where disposable polymer cartridges are not durable enough. The pleated pack increases filtration area inside the same housing envelope, helping reduce pressure drop and extend service intervals.

Filter media can be configured with stainless steel woven wire mesh, sintered wire mesh or sintered metal fiber felt depending on the required retention, flow rate, dirt holding capacity and cleaning method. End caps, cores, guards and adapters can be matched to existing housings or supplied according to your drawing.

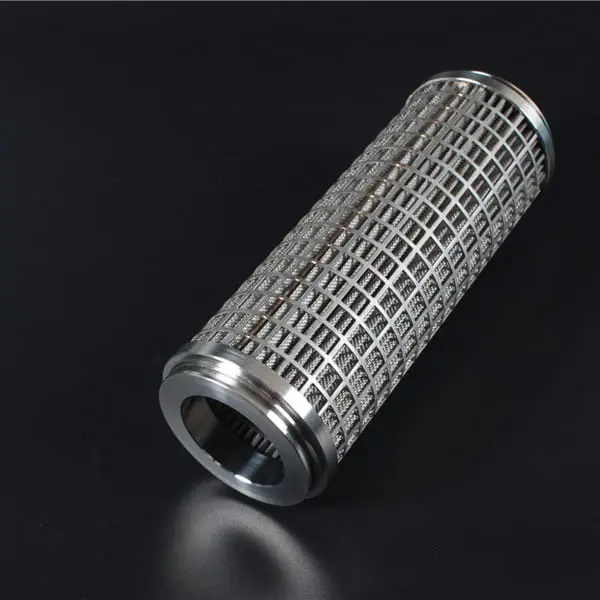

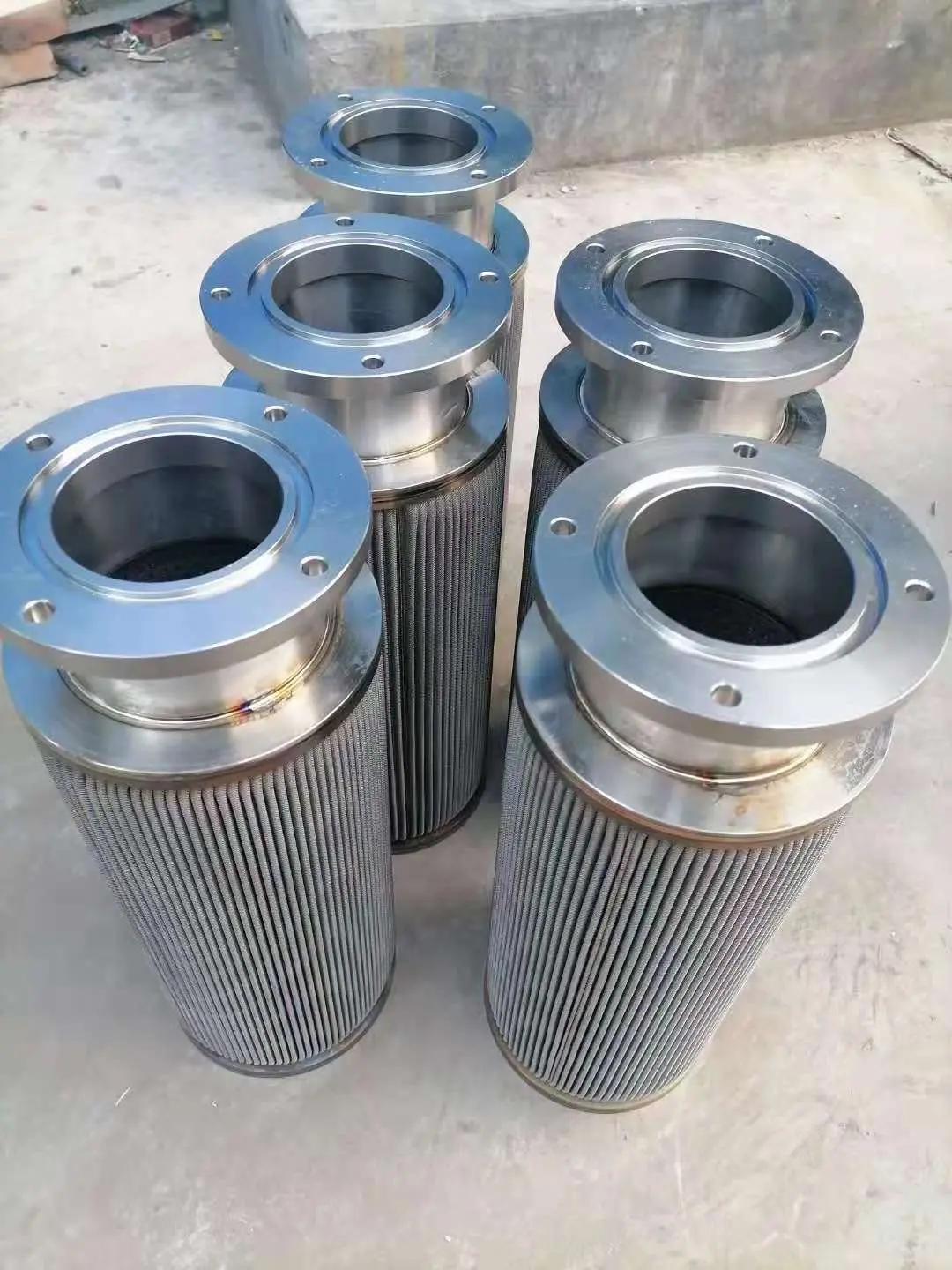

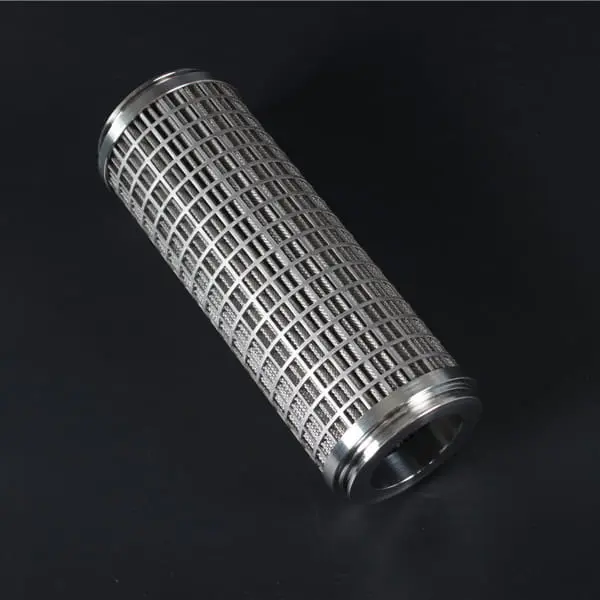

Workshop display of stainless steel pleated filter cartridges
play_circle

Pleating Process

Best for
High-temperature, chemical, steam, oil and reusable industrial filtration where cleanable metal media is required.
Not ideal for
Very low-cost disposable filtration or certified sterile membrane filtration where polymer membrane cartridges are specified.
Surface or Depth Filtration
Choose wire mesh for cleanable surface filtration or fiber felt for high dirt holding depth filtration.
Replacement Matching
Send an old cartridge photo, part number, housing size or drawing for quick equivalent design.

Technical Reference

Construction, Operating Limits & Flow Reference

Construction details and operating limits for stainless steel pleated cartridges. Flow curves are reference data only; actual pressure drop varies with micron rating, viscosity, temperature, contaminant load and cartridge length.

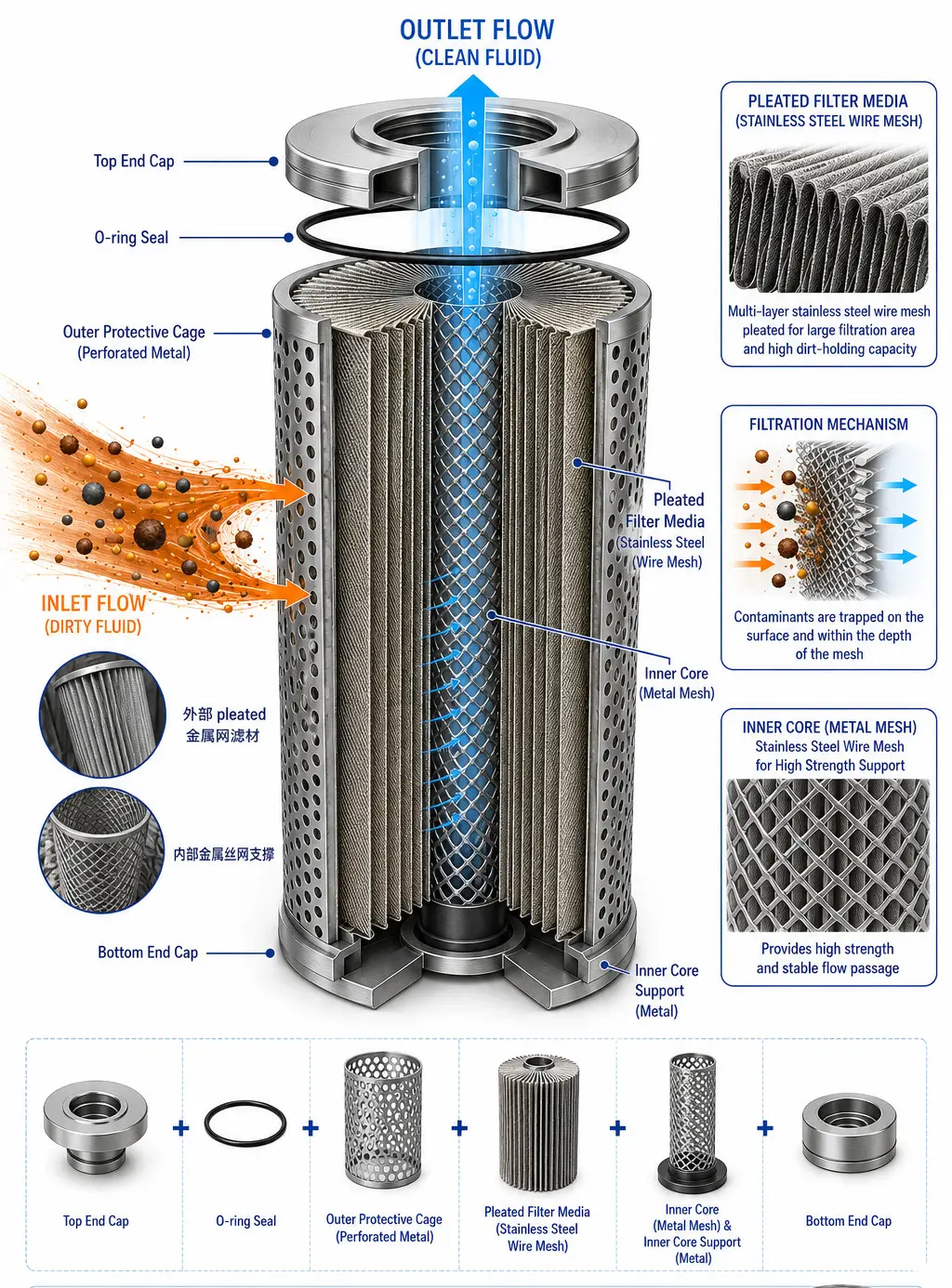

Pleated stainless steel filter cartridge construction diagram

Operating & Construction Data

Materials of Construction

Media: 316L Stainless Steel

Support Layers: 316L Stainless Steel

Structure: 316L Stainless Steel

Maximum Differential Pressure

Forward: 250 psid (17 bar) @ 700°F (371°C)

Reverse: 50 psid (3.4 bar) @ 700°F (371°C)

Chemical Compatibility

Steel flow is compatible with all chemicals that may be processed using stainless steel.

Operating Temperature Range

Maximum: +700°F (371°C)

Minimum: -450°F (-268°C)

Effective Filtration Area

1.8 ft² (0.17 m²) per nominal 10 inch (250 mm) cartridge.

Regenerable

May be cleaned chemically, mechanically or thermally.

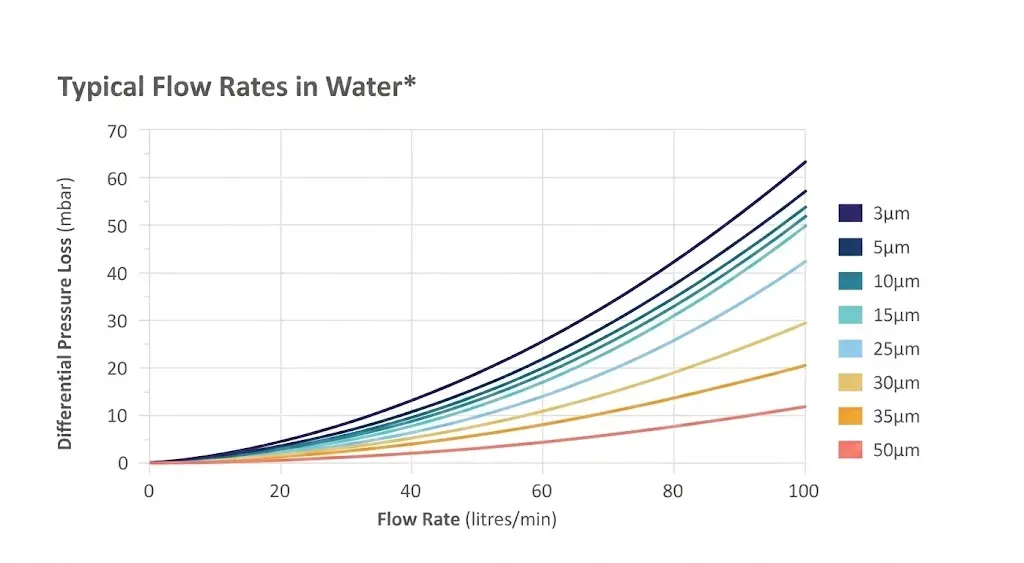

Water Flow Rate Curve

Pleated filter cartridge water flow pressure drop curve

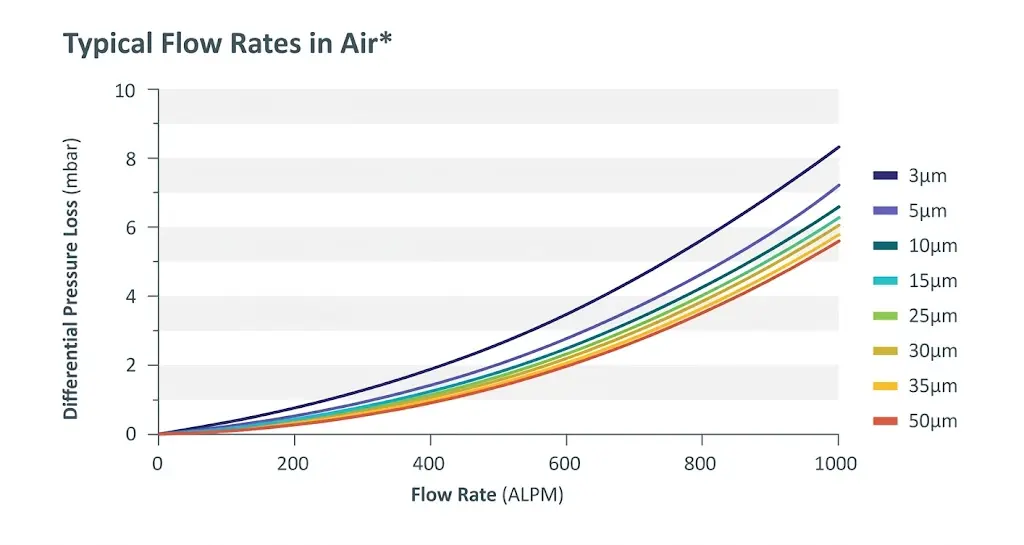

Air Flow Rate Curve

Pleated filter cartridge air flow pressure drop curve

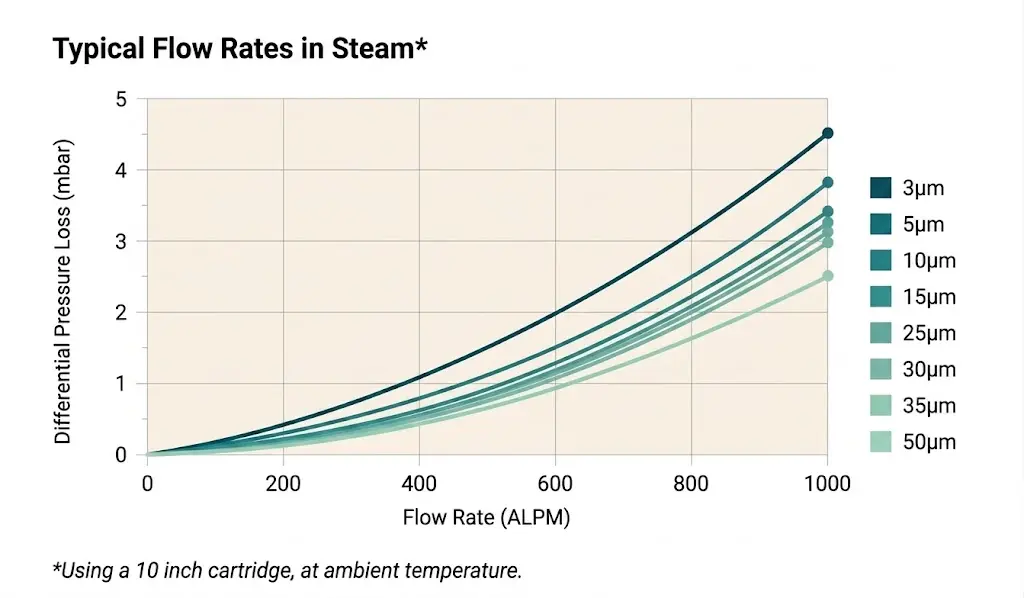

Technical Specifications

Custom Configuration Reference — Pleated Cartridge Specifications

Final ratings depend on filter media, diameter, length, seal material, flow direction and housing design.

Construction & Materials

Filter MediaSS wire mesh / sintered mesh / sintered fiber felt
Metal OptionsSS304 / SS316 / SS316L / special alloys
Core & End CapsWelded stainless steel
SealsEPDM / Silicone / Viton / PTFE / metal gasket

Operating Reference

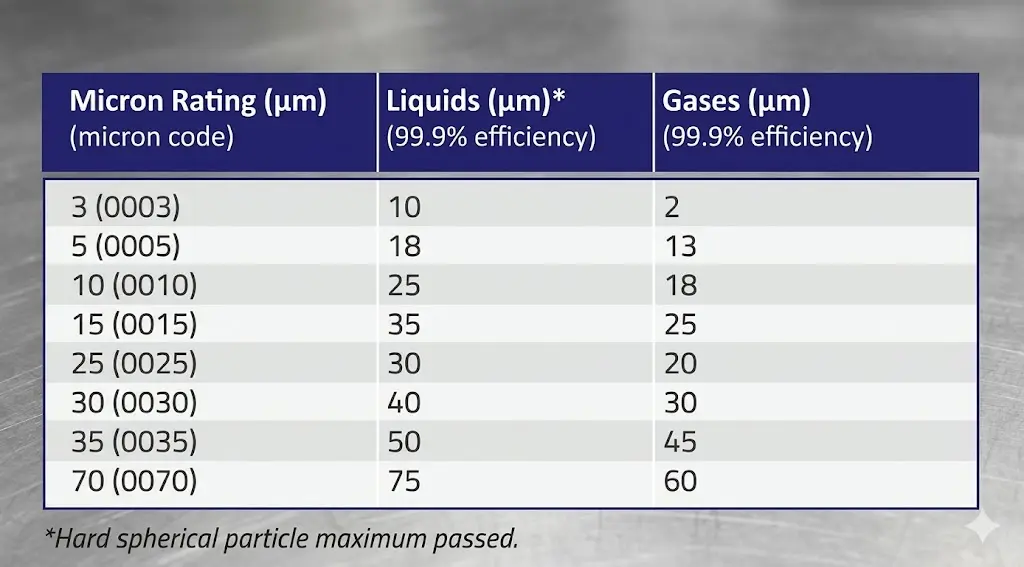

Micron Rating0.5–200 µm depending on media
TemperatureHigh-temperature service; seal limited
Differential PressureDesigned by media, guard and flow direction
CleaningBackwash / ultrasonic / chemical / steam

Dimensions & Connections

Lengths5" / 10" / 20" / 30" / 40" / custom
DiameterCommon 60–70 mm; custom available
End FittingsDOE / 222 / 226 / threaded / flange
ReplacementMatch by sample, drawing or part number
Pleated filter cartridge end connection options
Typical dimensions for pleated stainless steel filter cartridges

Testing Equipment

Bubble Point Test & Inspection

Bubble point testing helps verify pore integrity and filtration consistency before stainless steel pleated cartridges are released for industrial service.

Bubble point test equipment for stainless steel pleated filter cartridges

Component Details

Built to Address Customer Concerns

End caps, spring loading and pleat support are designed to improve sealing reliability, vibration resistance and effective filtration area.

join_inner

End Caps

  • •Stainless steel end caps provide better structural stability under high differential pressure.
  • •Precision welded construction replaces adhesive bonding to minimize bypass leakage and maintain stable filtration performance.
compress

Spring

  • •Built-in stainless steel spring maintains axial sealing force during pressure fluctuations.
  • •Spring-loaded construction improves cartridge stability in high-vibration hydraulic systems.
density_medium

Pleated Structure

  • •Optimized pleat geometry increases effective filtration area within a limited cartridge envelope.
  • •Stable pleat support helps reduce media deformation risk under high differential pressure.

Application Coverage

Typical Applications — Liquid, Gas, Steam and Oil Filtration

Click any industry below to see specific equipment, operating conditions and recommended cartridge structures.

Oil & Gas

arrow_forward

Gas separators, LNG, offshore hydraulics, water injection, crude oil and amine systems.

Petrochemical

arrow_forward

FCC, hydrocracking, HDS, ethylene cracking, aromatics and amine systems.

Polymer & Synthetic Fiber

arrow_forward

PET, nylon, BOPET, BOPP, polyolefin film and POY / FDY / PSF spinning.

Steel & Metallurgy

arrow_forward

Continuous casting, hot rolling, blast furnace, EAF, sinter plant and pickling lines.

Coal Mining Machinery

arrow_forward

Hydraulic roof support, longwall shearer, roadheader, AFC and emulsion pump stations.

Water Treatment

arrow_forward

RO / UF / NF pre-filtration, seawater desalination, cooling water and wastewater systems.

Compressed Air & Industrial Gas

arrow_forward

PSA N₂ / O₂ / H₂, instrument air, LNG, semiconductor and sterile fermentation gas.

Marine & Offshore Engineering

arrow_forward

Marine fuel & lube oil, seawater cooling, BWTS, steering gear, LNG fuel and FPSO.

Technical Support

Frequently Asked Questions — Pleated Filter Cartridges

Can pleated stainless steel cartridges be cleaned and reused?

add

Yes. Depending on the contaminant and media type, cartridges can be regenerated by backwashing, ultrasonic cleaning, chemical cleaning or steam sterilization. Cleaning limits should be matched to the seal material and working fluid.

Which media should I choose: wire mesh, sintered mesh or fiber felt?

add

Wire mesh is suitable for surface filtration and easy cleaning. Sintered metal fiber felt is better for depth filtration and high dirt holding capacity. Sintered wire mesh is preferred when mechanical strength and stable pore structure are priorities.

What information is needed for a replacement cartridge?

add

Please provide length, outer diameter, inner diameter, end connection, seal material, micron rating, flow direction and working conditions. Photos of the old cartridge or housing nameplate are very helpful.

Request a Quote for Pleated Filter Cartridges

Provide your specifications and our team will respond with a detailed quote within 24 hours.

PDF, DWG, STEP, JPG, PNG · Max 10MB per file
Response within 24 hours · Technical drawings welcome · No minimum for samples
